Eurobrace Balustrade

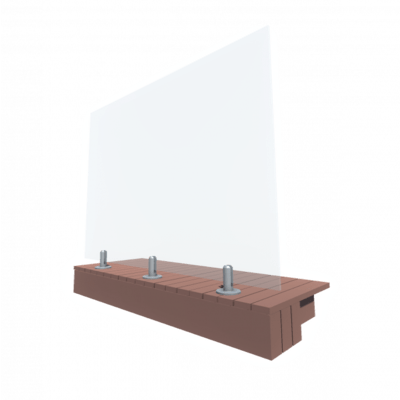

The stainless steel mini-post supports are anchored into the flooring, raising the glass above the ground which provides the opportunity for water, leaves, and debris to egress.

Eurobrace Balustrade with round and square braces are available to suit different architectural styling.

Features

Gallery

Specifications

Downloads

Eurobrace Balustrade

  • Building Application: Post Fixed
  • Building Type: Residential
  • Occupancy Type: A, C3

Safety Glass Options

Colours of Glass Available

  • Clear Standard Glass
  • SuperClear™ Low Iron
  • Tinted Glass
  • Pixagraphic™ Digitally Printed Glass

Colours of Balustrade System

You can powder coat your hardware accessories to any colour you would like.

Glass Selection for Balustrades

Choose from 3 different options for our glass balustrades

Toughened Glass

Toughened glass is up to 5 times stronger than annealed glass. This allows the glass to break with dull edges. When selecting it for your balustrade the New Zealand standard demands you to also use a handrail or top-capping system that will ensure other panels of glass remain in place in the unlikely event of one breaking.

Toughened Laminated Glass

Toughened laminated glass is a safe option for home owners. This ensures that the glass will be bonded together if the glass breaks. The existing New Zealand standard stipulates that an interlinking clamp is needed if EVA laminated glass is used for balustrades.

SentryGlas™

Sentryglas™ balustrades are the only form of balustrade that can be used in a fully frameless manner. This is because the glass contains an interlayer that is 100 times stronger and 5 times stiffer than traditional laminates. This ensures that deflection is kept to a minimum, in the unlikely event of the glass breaking.

Specifications

Features
  • A EUROBRACE balustrade is designed to allow water to pass underneath the bottom edge of the glass.
  • EB Eurobrace creates a gap under the glass that allows water to egress underneath the glass and over the edge of the deck away from the pool or spa enclosure.
Scope / Applications

EuroBrace are designed to be used as;

  • Internal and External Pool Fences
  • Wind Breaks

EuroBrace can be attached to the following substrates;

  • Concrete
  • Timber

EuroBrace complies with the New Zealand building code and glazing standards used in conjunction with the following Viridian Glass types and Euroglass systems.

  • Viridian’s toughened safety glass
  • SENTRYGLAS® incorporated with a Euroglass System offers a pure clean and clear traditional frameless barrier
Performance

Rated to be used up to a very high wind zone (1.76Kpa or less)

The minimum height for a fence to prevent access into a pool area is 1.2m from the finished floor level. Please refer to NZS8500:2006 for design and safety requirements to meet the building code.

This proprietary pool fence system complies with New Zealand Building Code Clauses;

  •  B1 – Structure and B1/VM1
  •  B2 – Durability
  •  F2 – Hazardous Building Materials

Based on 330N point load from NZS8500:2006, maximum heights for the glass and EuroBrace spacing’s are provided within our Technical Data Sheets.

Viridian safety glass options are;

  • 2mm toughened safety glass
  • 13.52mm toughened SENTRYGLAS® laminated safety glass (SENTRYGLAS® is a stiff interlayer that complies with 22.4.3 (c) of NZS4223.3:2016)

In the unlikely event of glass failure or to make allowance for the consequence of failure required by clause B1.3.4 of the Building Code B1, Viridian’s toughened SENTRYGLAS® laminated safety glass is recommended to be used.
